Viscosity and Boundary Layers

This chapter deals with the effects of viscosity in two dimensions. The sections describe the basic phenomena and some simple theory that may be used to estimate boundary layer properties.

Boundary layers appear on the surface of bodies in viscous flow because the fluid seems to "stick" to the surface (*see note). Right at the surface the flow has zero relative speed and this fluid transfers momentum to adjacent layers through the action of viscosity. Thus a thin layer of fluid with lower velocity than the outer flow develops. The requirement that the flow at the surface has no relative motion is the "no slip condition."

The velocity in the boundary layer slowly increases until it reaches the outer flow velocity or free stream velocity  Ue.

The boundary layer thickness, d, is defined as the distance required for the flow to nearly reach Ue. We might take an arbitrary number (say 99%) to define what we mean by "nearly", but certain other definitions are used most frequently.


The boundary layer concept is attributed primarily to Ludwig Prandtl (1874-1953), a professor at the University of Gottingen. His 1904 paper on the subject formed the basis for future work on skin friction, heat transfer, and separation. He subsequently made fundamental contributions to finite wing theory and compressibility effects.  Theodore von Karman and Max Munk were among his many famous students.

Prandtl Number

Dimensionless group

Thermal diffussivity m2/s

Kinematic viscosity m2/s



Reynolds Number

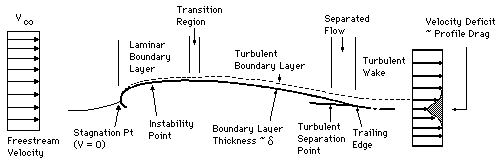

The character of the boundary layer changes as it develops along the surface of the airfoil. Generally starting out as a laminar flow, the boundary layer thickens, undergoes transition to turbulent flow, and then continues to develop along the surface of the body, possibly separating from the surface under certain conditions.




In laminar flow, the fluid moves in smooth layers or lamina. There is relatively little mixing and consequently the velocity gradients are small and shear stresses between the layers are low.

The thickness of the laminar boundary layer increases with distance from the start of the boundary layer and decreases with Reynolds number.




As the fluid is sheared across the surface of the body, instabilities develop and eventually the flow transforms into turbulent motion.

Turbulent boundary layer flow is characterized by unsteady mixing due to eddies or mini vortices that are sometimes fractal in nature. many . This result in higher shear stress at the wall, a "fuller" less progressive velocity profile, accompanied by a greater boundary layer thickness. The wall shear stress is higher because the velocity gradient near the wall is greater. This is because of the more effective mixing disturbance between neighbouring layers that is associated with turbulent flow. However, the lower velocity fluid is also transported outward with the result that the distance to the edge of the layer is larger.




Several fundamental effects are produced by the viscosity of the working fluid

 Drag Force: Skin friction drag caused by shear stresses at the surface contribute a majority of the drag of most airplanes.

The pressure distribution over the surface is changed by the presence of a boundary layer, even when no significant separation is present. This changes CL and Cm.

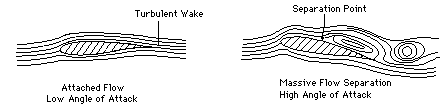

Flow separation: Viscosity is responsible for flow separation which causes major changes to the flow patterns and pressures.



http://www.desktopaero.com/appliedaero/blayers/blayers.html



*Actually, the zero slip condition at the surface arises from the roughness of the surface on a molecular scale. Fluid molecules hitting the surface impart a net momentum to the surface and the mean velocity of molecules hitting the surface is about the same as the surface velocity.
Even when the surface is extremely smooth, electrostatic forces exist between the surface and the air molecules, introducing the shear stress at the surface. If this interaction could be reduced, a reduction in skin friction would result, but no one has found a way to do this.
